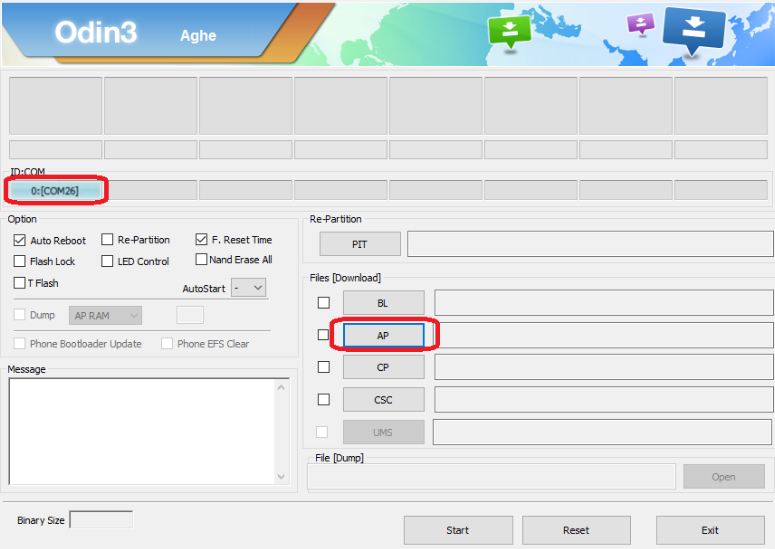

Artikel Hari ini Flash Ponsel berbagi bagaimana Cara Flashing menggunakan Odin, tool Odin ini digunakan untuk flashing Samsung dengan base Android, fungsi dari Odin untuk modifikasi ponsel Android Samsung. Flashing menggunakan Odin hanya mampu merubah secara keseluruhan 90% dari software bawaan samsung, Ponsel Android samsung yang mempunyai. Kemudian Centang Auto Reboot F Dan Nand Erase All, Pastikan Samsung Galaxy Anda Terdeteksi Di Odin,Dengan Munculnya Tanda ID:COM Pada Odin; Selanjutnya Pada Tab AP/DPA Masukkan Firmware Samsung Galaxy Yang Sudah Anda Download Dan Di Ekstrak Tadi,Klik Saja 2X Maka Secara Otomatis Firmware Akan Termuat Oleh Odin.
Pit file setup partitions - very useful if you broke some partition.Nand Erase All clean all partitions including internal sdcard before installing rom.EFS ( block 11 ) on note 3 doesn't contain IMEI ( all devices on snapdragon ).IMEI is on block 12 and 13. If you clean efs, the partition will be rebuild from block 12.So you can check the options Re-partition, Nand Erase All and also Phone EFS Clear to do clean Wipe.and make sure you have the PIT file of the respective device and STOCK ROM.
Fungsi Nand Erase All Pada Odin Drive
I understand now that it's an internal Samsung tool for flashing firmware, which explains why it's so hard to find info on the (rather cryptic) options and buttons. Can anyone here perhaps enlighten us with a basic description for the following:. Options:. Re-Partition (checkbox). F.
Reset Time (checkbox). Phone EFS Clear (checkbox). Phone Bootloader Update (checkbox). Buttons and files:.
PIT (button to select a.pit,.xml file). PDA (button to select.tar,.md5,.smd file). PHONE (button to select.bin,.tar,.md5 file). CSC (button to select.tar,.md5 file).
ETC (button to select???)For reference, here's a screenshot of the App showing these various options and buttons. Looking at this Odin 3, don't forget, there are variant versions of Odin in respect to different Samsung devices. But this particular one is what's used to flash, from my experience, Samsung Galaxy 5 and Samsung Galaxy tablet P1010T.In short, for Odin to operate, there can be.bin, or.tar or even.tar.md5 files associated with a ROM for flashing.
Odin knows how to handle them in the appropriate manner. (Have not seen.bin used, its more of the.tar.md5 which is a tar file with MD5 check-sums contained in the archive, in which Odin will automatically verify each file within it).
Re-Partition does what it says - re-partitions the layout. Auto Reboot and F.Reset Time - when the flash is done, auto reboot and reset the timer of the flashing when done. Usually can leave those two checked. PIT - this is a file that describes the layout of the partitions involved, this will be very specific to the device in question, use the wrong PIT file for the device, and its.
Face the consequence!. PDA - an all in one archive that contains the.img's MD5 sum, boot, recovery, system, userdata, cache and movinand.
